  1. Modules overview
  2. Cryptoscreener module

Volatility factor

PreviousRight block tableNextCryptocurrency Heatmap Binance

Last updated 1 year ago

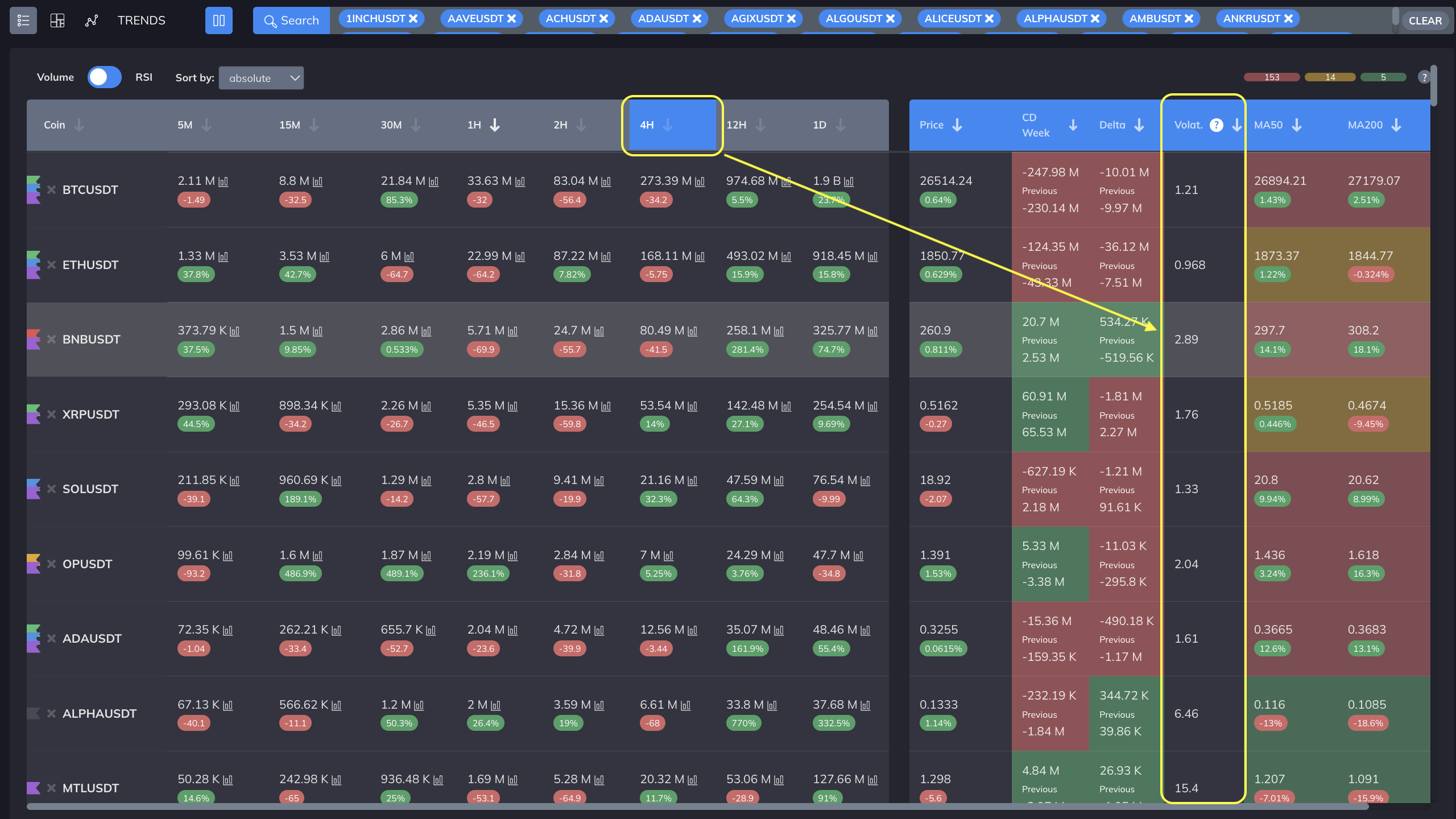

Column "Volat." (volatility of cryptocurrencies) shows the amplitude of changes in the closing price relative to the selected timeframe. The higher the value, the higher the volatility.

Calculation of the volatility factor by timeframe:

Timeframe
Period

5m

using the value of 6 previous 5m candlesticks (range 30 min)

15m

using the value of 4 previous 15M candlesticks (range 60 min)

30m

using the value of 4 previous 30M candlesticks (range 120 min)

1h

using the value of 4 previous 1h candlesticks (range 240 min)

2h

using the value of 4 previous 2h candlesticks (range 480 min)

4h

using the value of 4 previous 4h candlesticks (range 960 min)

12h

using the value of 4 previous 12h candlesticks (range 2880 min)

1d

using the value of 4 previous 1d candlesticks (диапазон 5760 минут)

Volatility indicator Tradingview

You can visualize the volatility factor calculation as an indicator on the Tradingview chart.

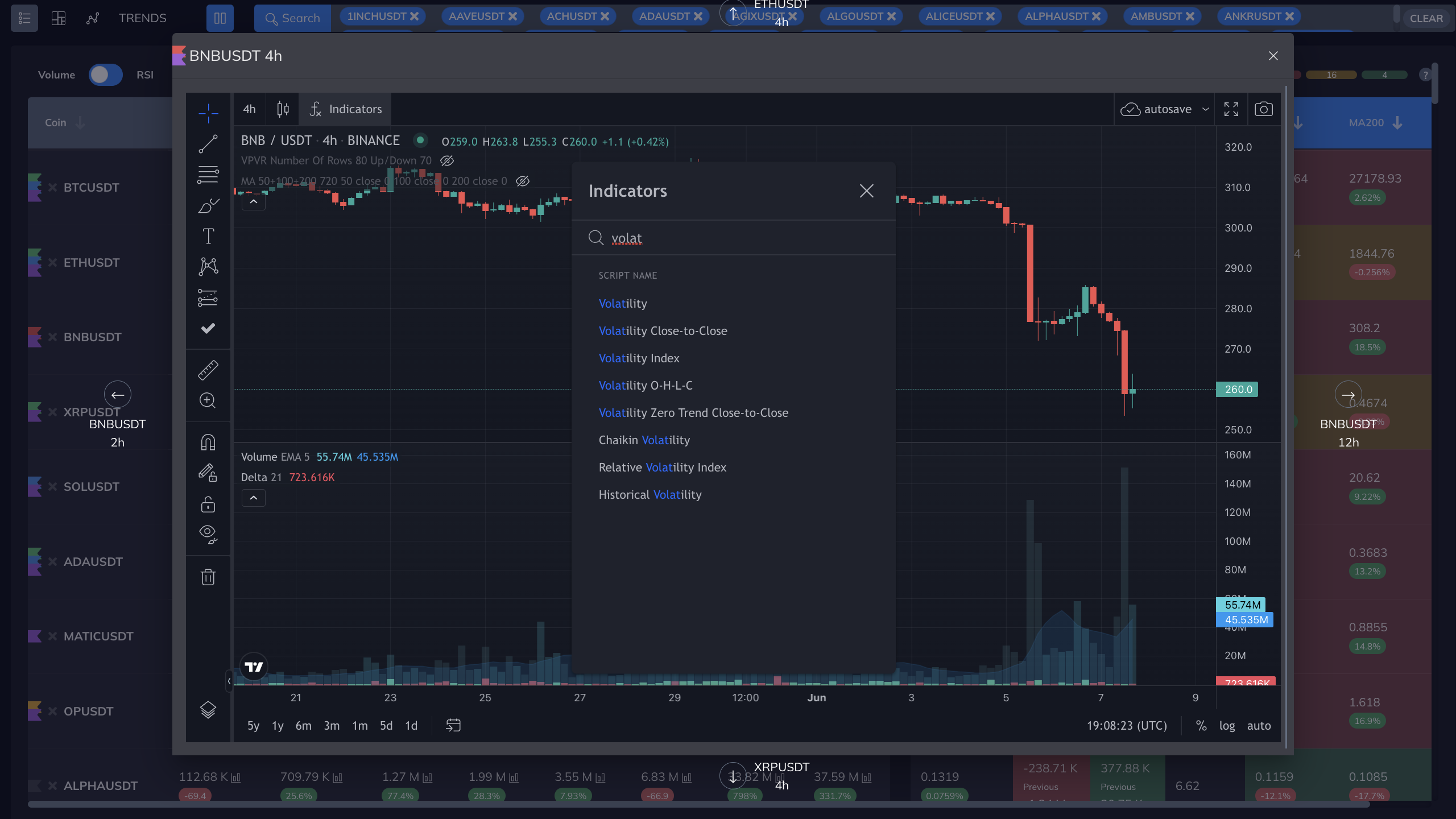

1. Adding an indicator to the chart

Open the Tradingview chart window and click on the "Indicators" button.

Enter the name of the indicator "Volatility" in the search box and select it from the list.

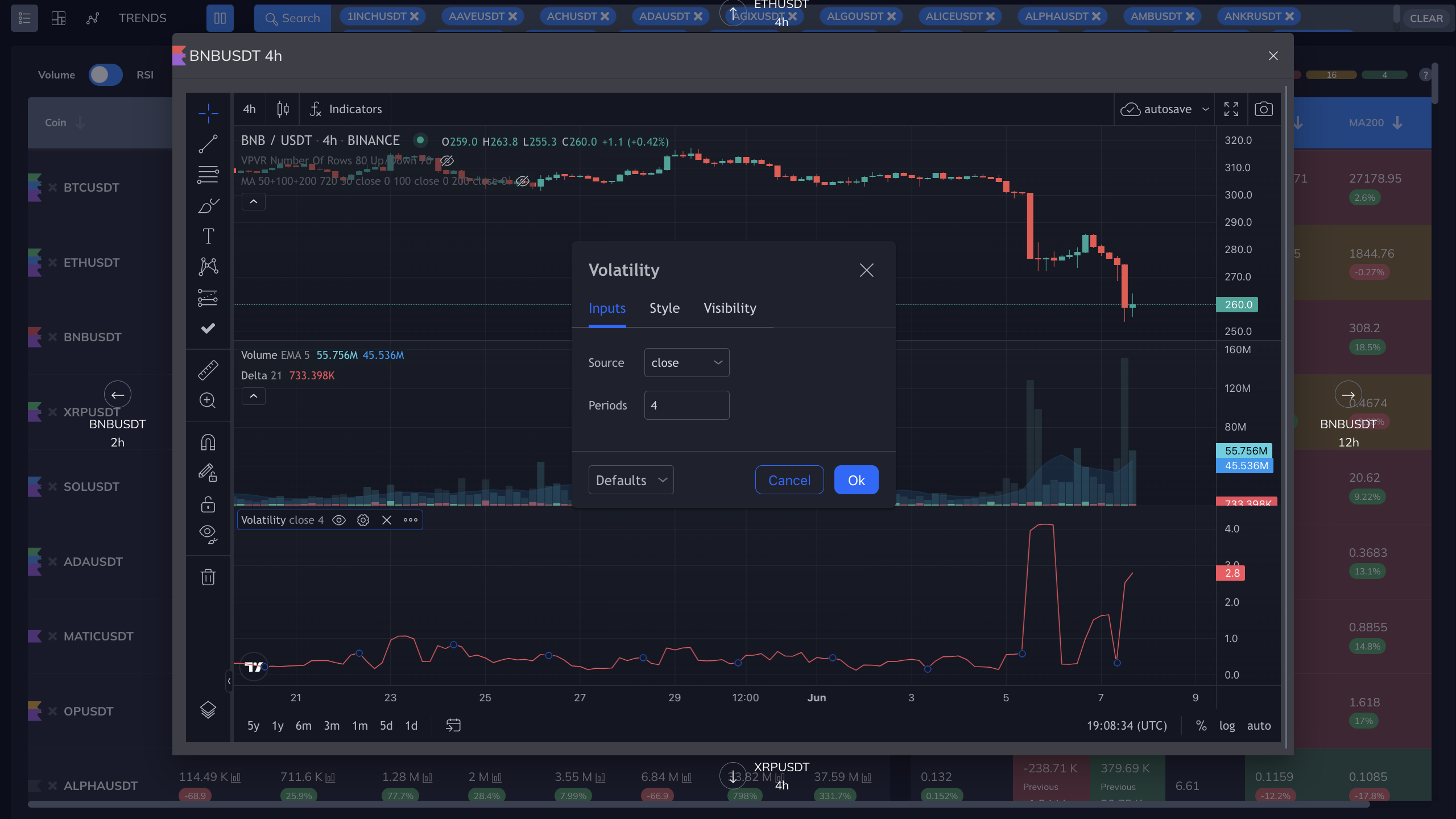

2. Setting indicator parameters

You don't need to manually set the parameters corresponding to the selected timeframe, the indicator itself changes the period for the desired timeframe

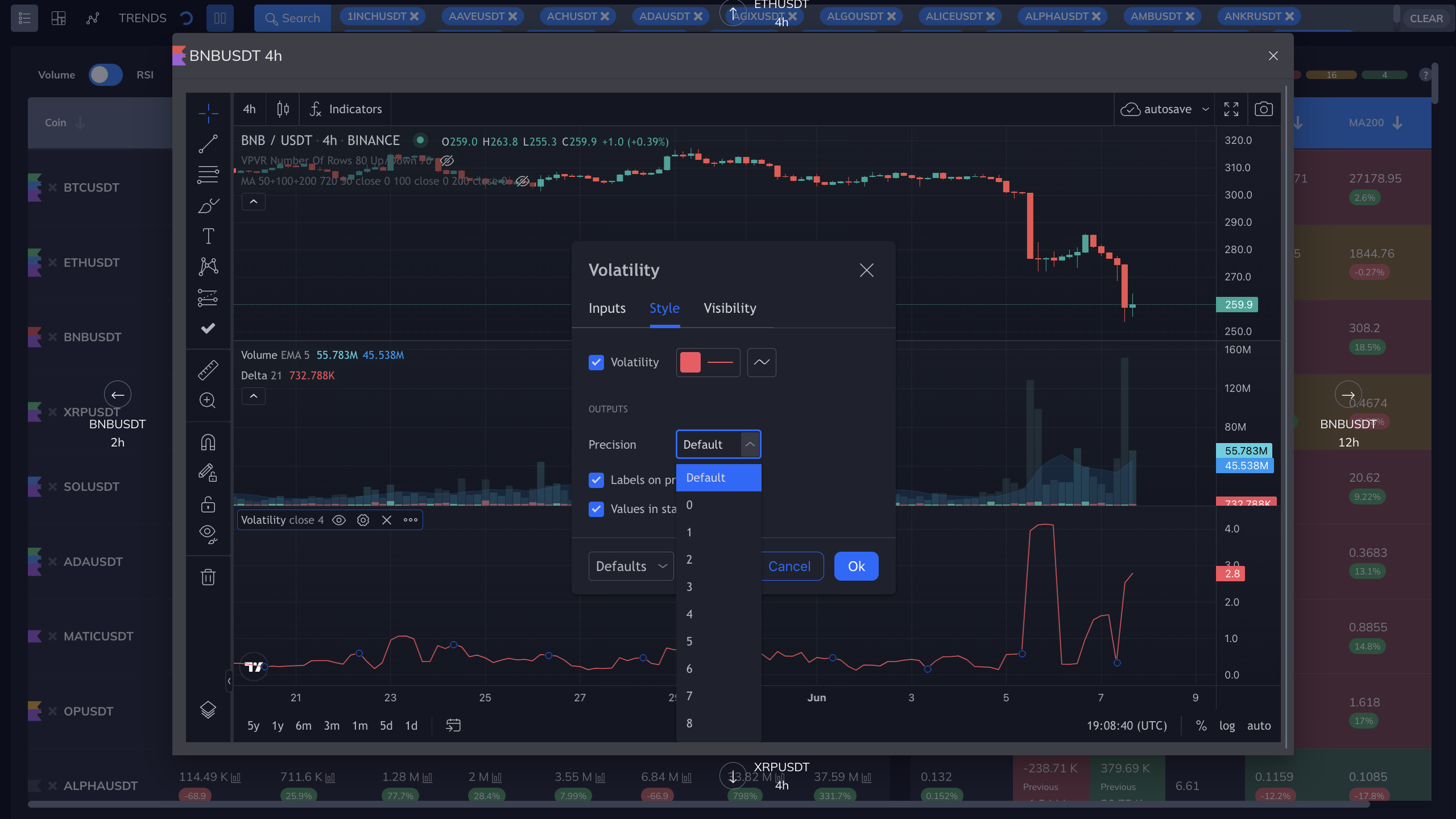

3. Setting precision

In the screener we round values depending on the timeframe. A higher timeframe, the lower precision value we use.

For example, on timeframes 5,15,30m precision is 4 decimal places - 0.0001

You can set the precison in the indicator settings, in the Style tab.

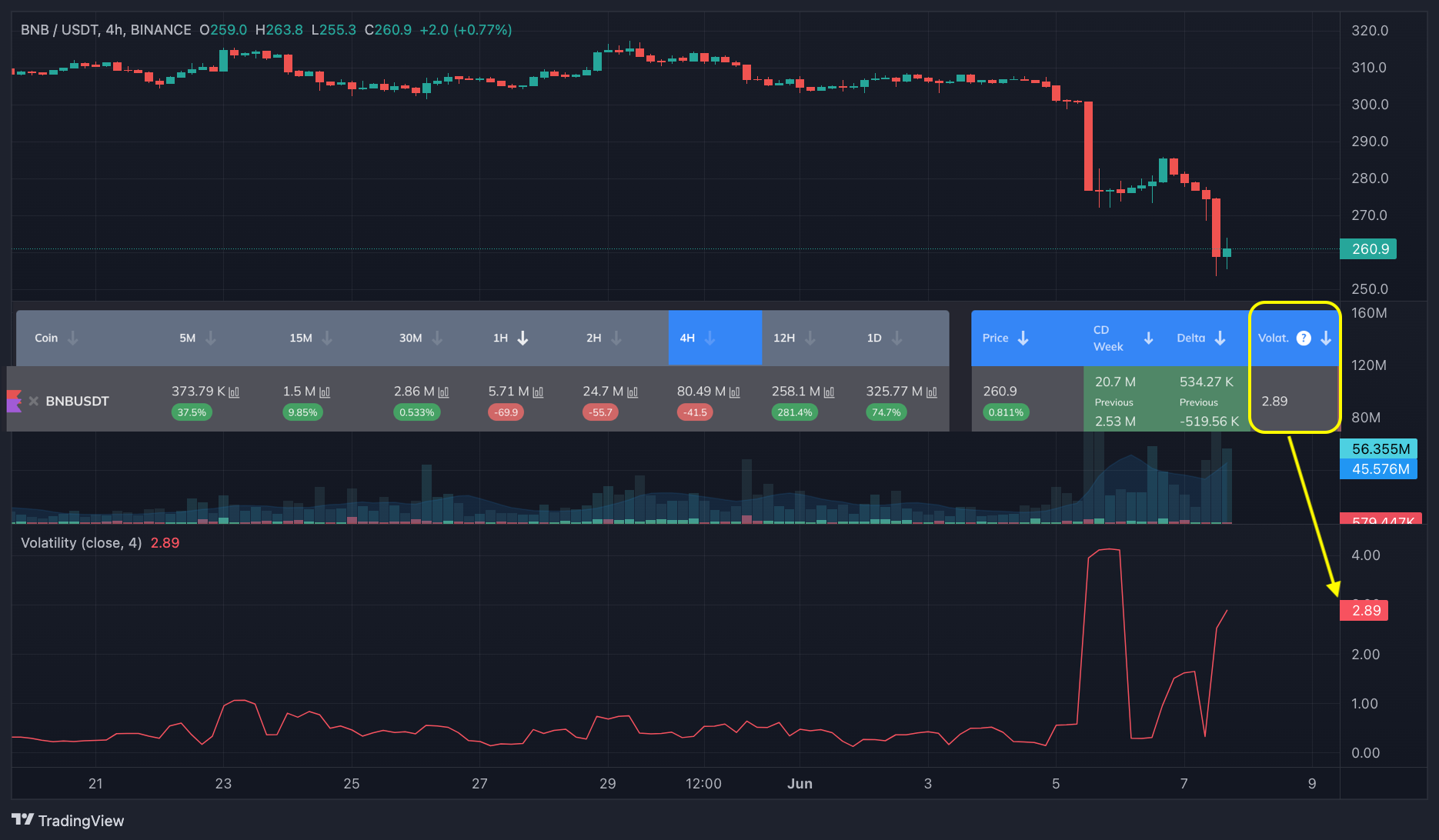

4. Comparison of the indicator values with the table

Compare the values obtained by the indicator with the table data to make sure you have set it up correctly.

Indicator has default period settings that match the for timeframes.

You can use the indicator to determine the exact parameters of the volatility values you are interested in to create or signals.

📈
single
group
table for calculating the volatility factor
Volatility value for a selected timeframe
The results of the indicator and the data from the screener table
